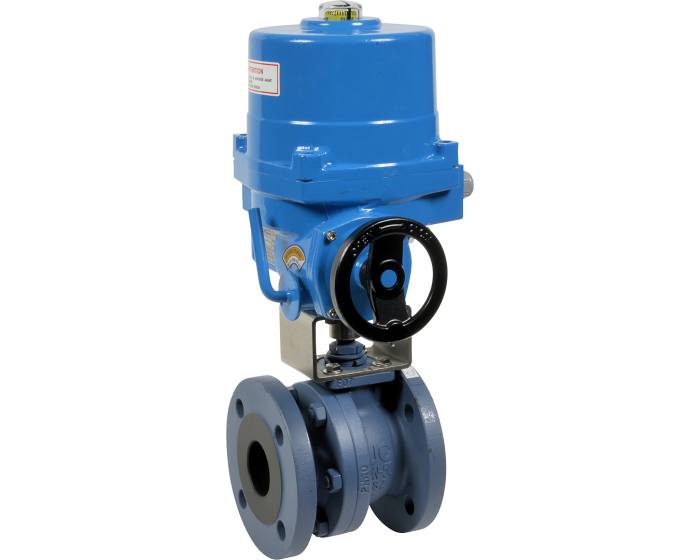

The JC 540AIT ball valve has an A216 WCB carbon steel body, stainless steel ball and PTFE seats. Full bore. ATEX electric actuator. PS: 40 bar, TS: 230°C. Flanges PN40 RF.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| ATEX atmosphere | IIB |
| Shaft/stem matérial | Stainless steel 316 |
| Manual override | By handwheel |
| Declutchable | Yes |
| DN | DN65 - 2''1/2 |
| Duty service | S2 duty service - 70% |
| Face to Face (mm) | 170.0 |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| Body material | Carbon steel A216 WCB (1.0619) |
| ATEX protection mode | Ex d |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | Graphite |
| PS (bar) | 16 |
| Power (W) | 25 |
| Connections | Flanged PN16 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | NAX 09 |
| Electric actuator series | SA-X/NA-X ATEX series |
| Seats | PTFE |
| Operating time (s) | 17.0 |
| Surface temperature | T4 |
| Voltage | 230 V AC |
| TS max (°C) | 230 |
| TS min (°C) | -20 |
| Ball valve design | 2-piece body |
| ATEX zone | 1. 2 |
| Warranty period | 1 year |
| CE | Risk category III |
| Range | JC Valves |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN65 - 2''1/2 Flanged PN16 NAX 09 | 516AIT065023330 | S1004620 |
€1,615.81
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN80 - 3'' Flanged PN16 NAX 15 | 516AIT080023340 | S1004621 |
€1,984.39
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN100 - 4'' Flanged PN16 NAX 28 | 516AIT100023360 | S1004622 |
€2,425.99
(excl. btw)
|
add to cart |

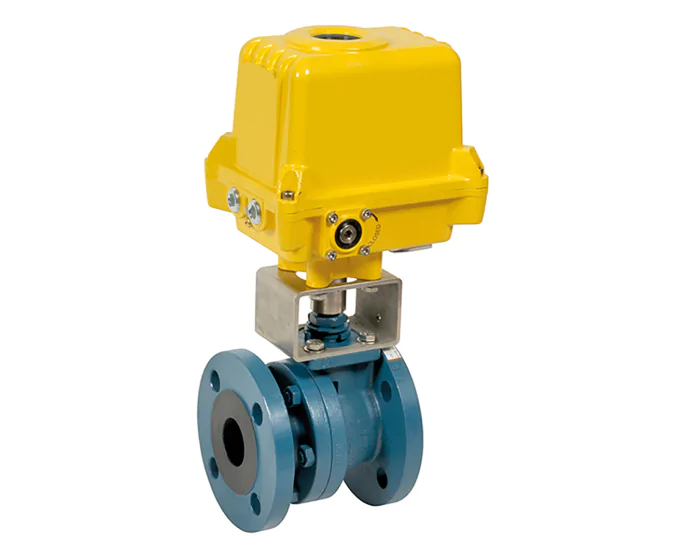

| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN15 - 1/2'' Flanged PN40 SA05-X | 540AIT015023310 | S1004625 |
€907.44
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN20 - 3/4'' Flanged PN40 SA05-X | 540AIT020023310 | S1004626 |
€947.70
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN25 - 1'' Flanged PN40 SA05-X | 540AIT025023310 | S1004627 |
€953.66
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN32 - 1''1/4 Flanged PN40 SA05-X | 540AIT032023310 | S1004628 |
€1,047.16
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN40 - 1''1/2 Flanged PN40 SA05-X | 540AIT040023310 | S1004629 |
€1,059.74
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN50 - 2'' Flanged PN40 NAX 09 | 540AIT050023330 | S1004630 |
€1,473.23
(excl. btw)
|
add to cart |
